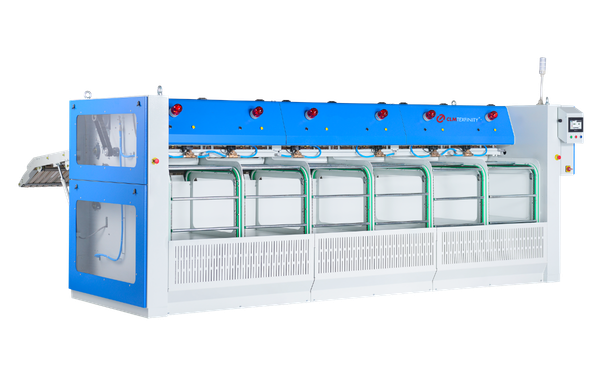

The S.smallstack connects directly to your ironer outlet and stacks small pieces on six lanes. Each piece drops onto a support bar. When the stack is complete, the bar rotates away and an empty bar takes over. Production never stops.
Set the stack size and start or stop each lane on the touchscreen. One operator supervises all six lanes.
Piece size and capacity
Piece size: 300 × 300 to 560 × 560 mm
Lanes: 6
Stack size: 1 - 30 pieces per lane
Capacity: 15 - 55 pcs/min per lane
Conveying speed: up to 60 m/min
Air supply
Pressure: 0.5 - 0.7 MPa
Consumption: 450 L/min
Power supply
Voltage: 3 phase 380 V / 50 Hz
Installed power: 1.95 kW
Dimensions W × D × H
4780 × 3480 × 1850 mm
Weight
2900 kg
High capacity
Up to 55 pieces/min per lane
Over 10.000 pieces/hour
Matches your ironer speed
Continuous stacking
Full bar rotates away
Empty bar takes over
No stop between stacks
Fits your linen
Pieces from 300 to 560 mm
Automatic drop adjustment
Stack size 1 to 30
Easy to work with
Settings per lane on touchscreen
Start or stop each lane separately
One operator for six lanes
