Garments
Garments

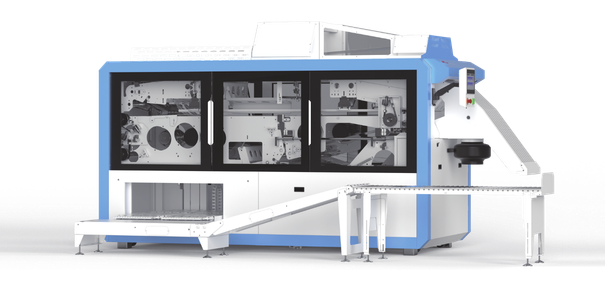

The S.garment m folds uniforms and workwear fed by your operator. It recognises shirts and trousers, selects the right folding method and sorts each type to its own stack.
Choose half fold, tri-fold or quarter fold, with a folding length up to 1600 mm. Built-in diagnostics show every fault on the display, so your operator can act at once.
Folding capacity
Up to 400 pieces/hour
Max folding length: 1600 mm
Folding methods: half fold, tri-fold, quarter fold
Compressed air pressure
Pressure: 0.5 - 0.7 MPa
Consumption: 30 L/h
Dimensions (L × W × H)
4365 × 2480 × 2080 mm
Machine weight
1650 kg
High efficiency
Folds up to 400 pieces per hour with one operator at the feed table.
Precision folding
High-precision sensors give the same neat, standardised fold on every piece.
Automatic recognition and sorting
The machine tells shirts from trousers and switches folding mode by itself. Two channels sort and stack each type separately. No manual sorting after folding.
Compact and simple
The small footprint fits tight production areas. Your operator feeds. The machine folds, sorts and stacks.
Smart fault detection
The machine diagnoses faults and alerts your operator via display or alarm. Downtime stays short.
