Flat Work Finish
Flat Work Finish

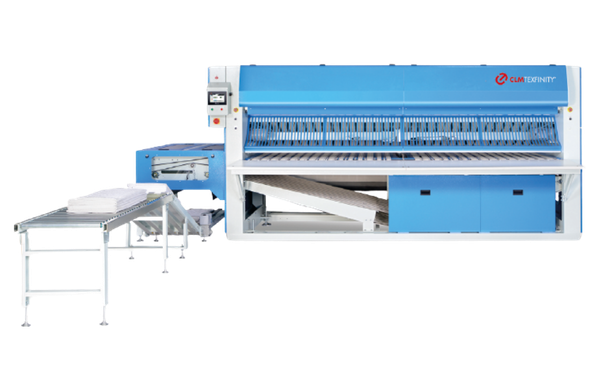

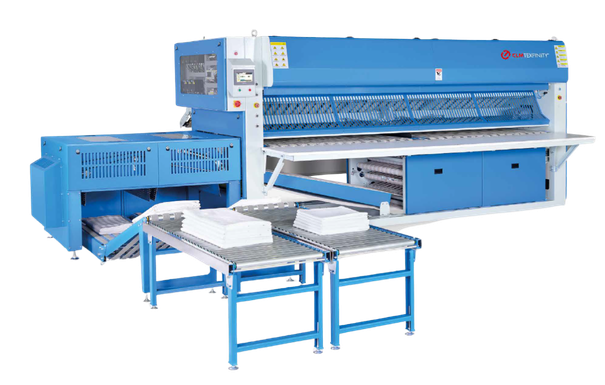

The versatile high quality and high speed large pieces folder that folds and stacks. Again and again, without giving in on quality. The sheet folder is available in different versions:
Max. folding size
One lane
3500 mm x 3300 mm
Two lanes
1700 mm x 3300 mm
Max. transmission speed
60 m/min
Air supply
Pressure
0.5-0.7 Mpa
Consumption
450 l/min
Power Supply
Voltage
3phase 400 V (with stacker)
Power capacity
5.9 kW (with stacker)
Dimensions
[l] 6975 mm x [w] 3190 mm x [h] 1830 mm (with stacker)
Weight
Folder
3150 kg
Stacker
500 kg
Connections
Air
16 mm
Cable section
3P + N + E
Main fuse
Depends on installation
Get the highest speed !
Folds up to 1200 sheets per hour on one lane and 2400 sheets per hour on 2 lanes.
Clever design for high precision folds (60m/min, optionally 70m/min)
Go for the best folding quality thanks to advanced quality
Precision folding, independent of material thickness
Air blast timing programmed in article specific programs
Integrated compressed air tank
Mechanical knife folding for cross folds
Continuous guidance of the piece
Stay Flexible !
1, 2 or 3 long folds, 1, 2 or 3 cross folds,
1-Lane, 2-lanes or 4-lanes operation
Variety of items that can be folded:
Sheets, duvet covers, pillowcases,
table linen, napkins, towels, fitted sheets
The S.fold-l can be connected with every brand of feeder and/or ironer.
Enjoy our next level support !
Your S.fold-l directly connected with our support team via internet
Lowest possible downtime
Fastest possible response time
Interactive error indication
