Flat Work Finish
Flat Work Finish

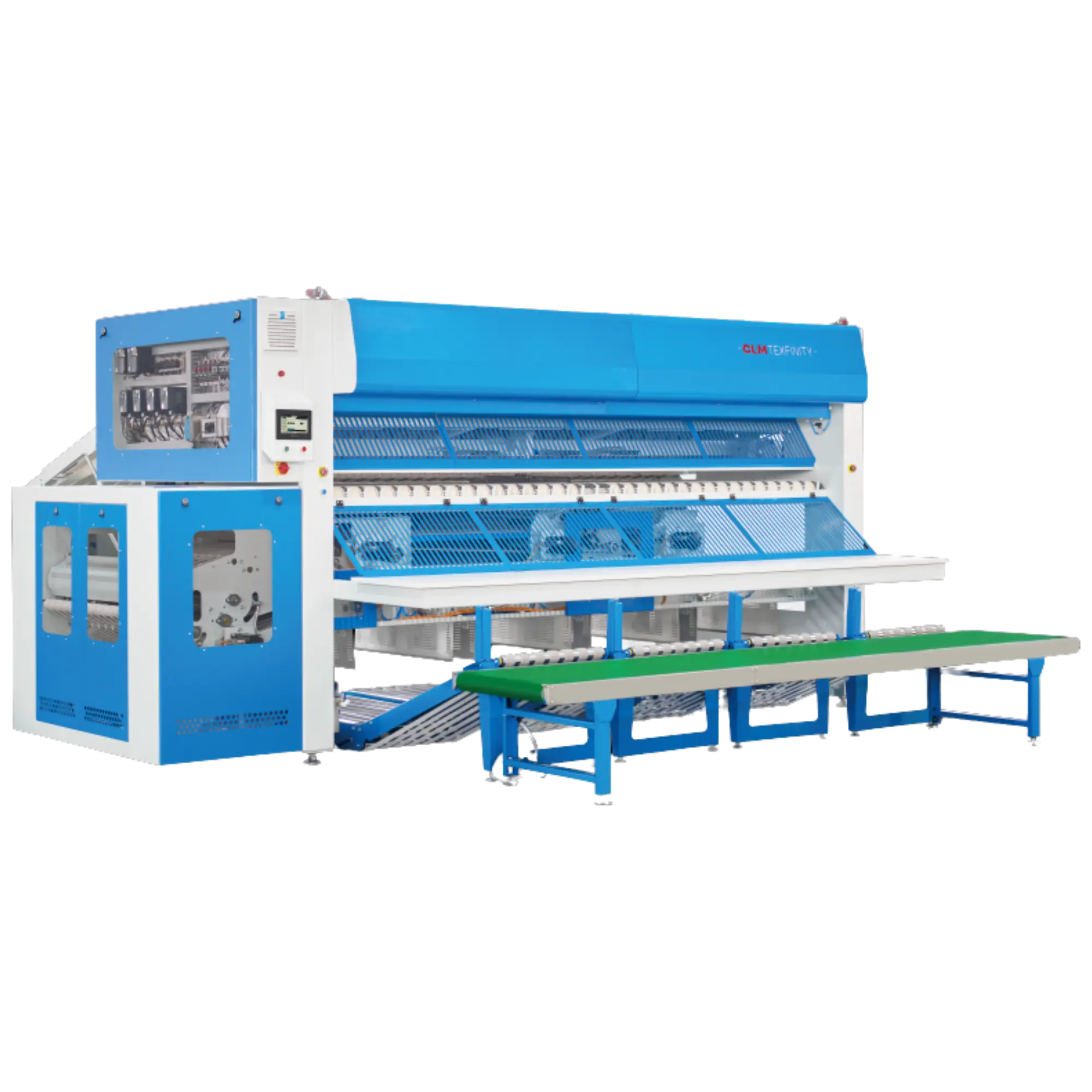

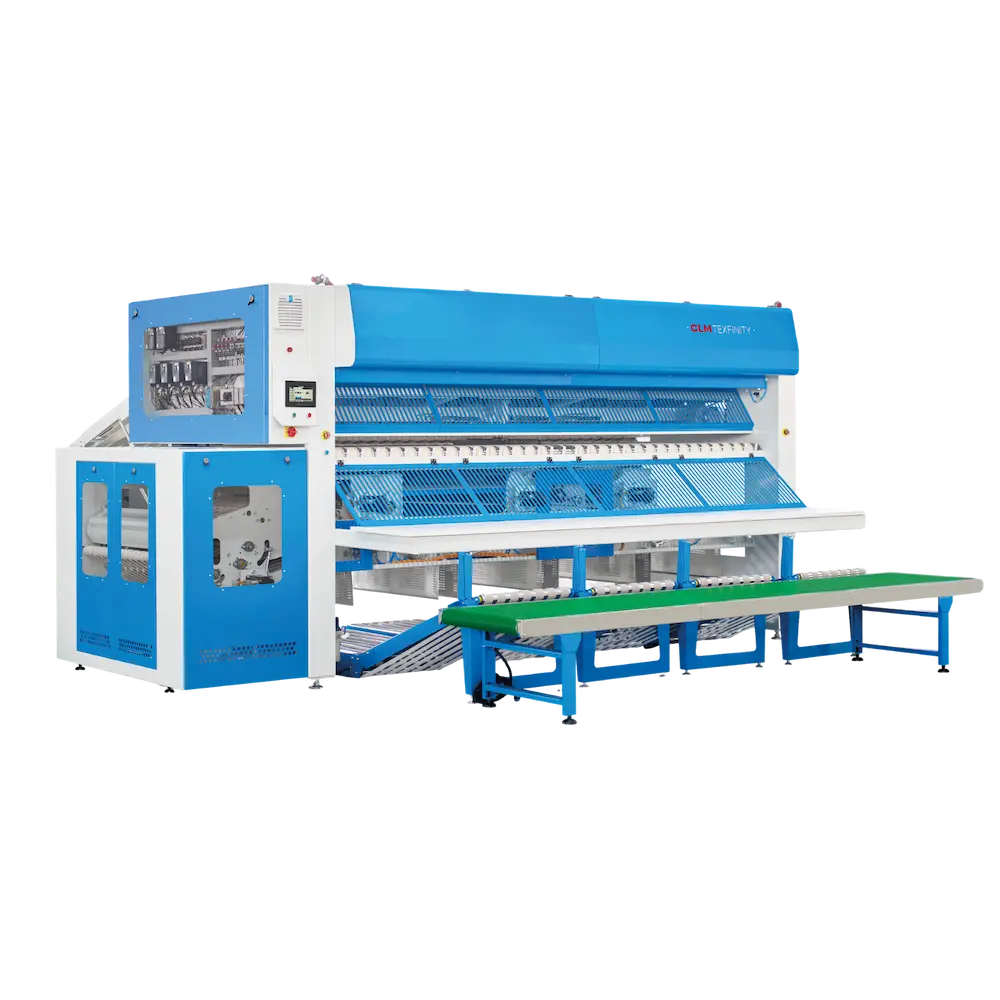

The S.fold q is a high-speed sorting folder designed for laundries that need accurate folding with minimal labour input. It automatically classifies, folds, and stacks bed sheets, duvet covers, and pillowcases, increasing throughput and reducing manual handling. It is designed with four or five stacking platforms, which can automatically sort and stack linens of different sizes, so that linens of the same specifications can be discharged from the same stacking platform.
.webp)
Max. folding size
3.300mm or 3.500mm x 3.600mm
Stacking quantity
Max. transmission speed
60 m/min
Air supply
Pressure
0.5-0.7 Mpa
Consumption
450 l/min
Power Supply
Voltage
3phase 400 V (with stacker)
Power capacity
7.8 kW (with stacker)
Dimensions (in mm)
LxWxH: 4375x4260x2350 or 4875x4260x2350
Weight
Folder
4.000 kg or 4300 kg
Get the highest speed !
Folds up to 1200 sheets per hour
Clever design for high precision
folds 60m/min
Go for the best folding quality thanks to advanced quality
Precision folding, independent of material thickness
Air blast timing programmed in article specific programs
Integrated compressed air tank
Mechanical knife folding for cross folds
Continuous guidance of the piece
Stay Flexible !
Automatic sorting on 4/5 Lanes and
moving onto a centralised conveyor !
1, 2 or 3 long folds, 1, 2 or 3 cross folds,
multi lane operation
Variety of items that can be folded:
Sheets, duvet covers, table linen, fitted sheets
The S.fold q can be connected with
every brand of feeder and/or ironer.
Enjoy our next level support !
Your S.fold q directly connected
with our support team via internet
Lowest possible downtime
Fastest possible response time
Interactive error indication
